    One stage telescopic, electric,...

19697

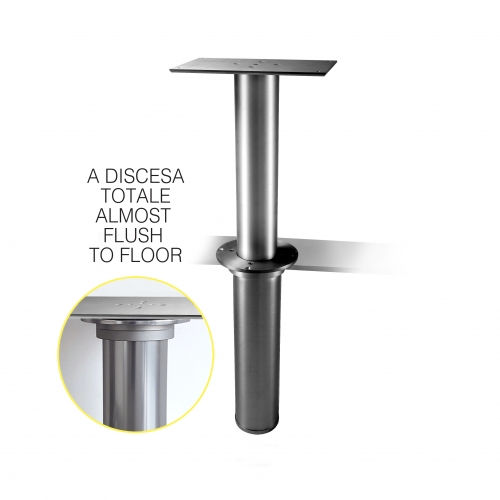

One stage telescopic,
electric, almost flush to floor, table pedestal

–––––––––––––––––––––––––––––––––––––

19697/12

Reference: 08.02.70012    12 Volt

––––––––––––––––––––––––––––––––––––––––––––––

19697/24

Reference: 08.02.70024    24 Volt

More details

Request information >

Built in polished, brightened and anodized light alloy

  • The feature to lower the table almost flush to the floor makes of these pedestals something special.
  • The generous size of the tubes make it ideal for tables of large dimensions.
  • Powered on request with 12V-8A or 24V-4A - Push 80 Kg - Speed 16 mm/sec - stroke 700 mm.
  • Can be stopped in any position - Electronic control box included.
  • Operated with a 3 position switch (not supplied) (UP - DOWN and automatic return to zero).
  • The switch doesn't need to reverse the polarity as the power doesn't flow through it.

CAUTION!

DO NOT PRESSURE WASH electric pedestals. Pedestals must NOT be subjected to water pressure because they may experience water intrusion and subsequent failure.

Pressure washing will invalidate the warranty for those products.

  • Indicate the SERIAL NUMBER of the item or the characteristic (chair or table, one or two stage) voltage and amperage Item   Volt Ampere Code 01053/10A/12 for table pedestals 12 10 09.99.00011 01053/5A/24 24 5 09.99.00012 01053/8A/12 12 8 09.99.00013 01053/4A/24 24 4 09.99.00014 01053/100/12 12 7...
