12197/G

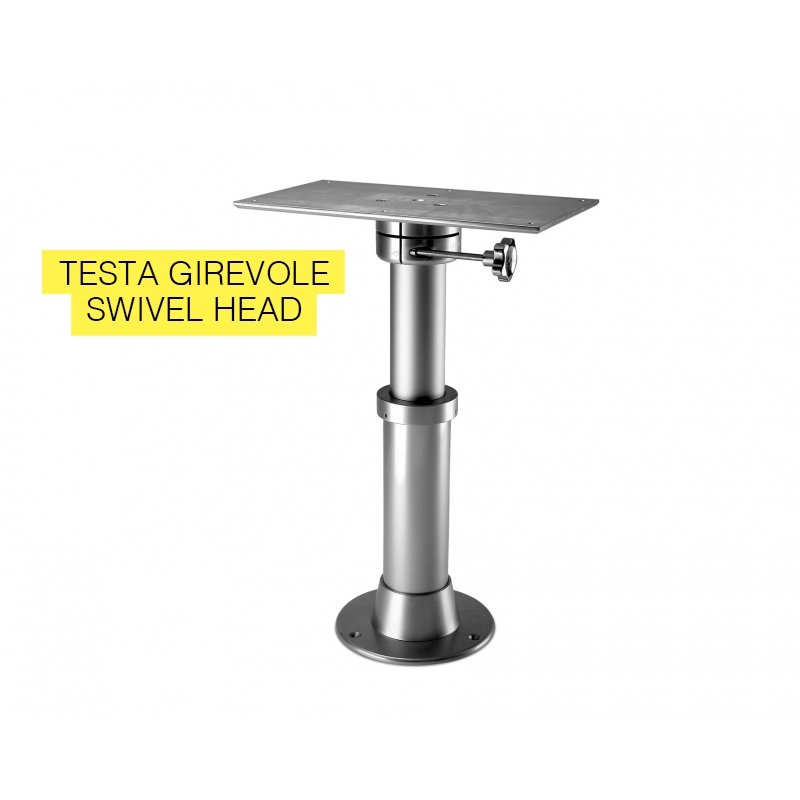

One stage telescopic electric table pedestal
with swivel head, without under floor protrusion

–––––––––––––––––––––––––––––––––––––

12197/G/12

Reference: 08.05.10012    12 Volt

––––––––––––––––––––––––––––––––––––––––––––––

12197/G/24

Reference: 08.05.10024    24 Volt

More details

Request information >

Built in polished and anodized light alloy

  • Pedestal suitable for mediium size tables.
  • The head can swivel on 360° and can be locked in any position to allow to choose at will the table position.
  • Powered on request with 12V-8A or 24V-4A - Push 80 Kg - Speed 16 mm/sec - stroke 250 mm.
  • The electric movement can be stopped in any position - Electronic control box included.
  • Only the power supply cable and the drainage hose (when installed outdoor) goes through the floor.
  • Operated with a 3 position switch (not supplied) (UP - DOWN and automatic return to zero).
  • The switch doesn't need to reverse the polarity as the power doesn't flow through it.

CAUTION!

DO NOT PRESSURE WASH electric pedestals. Pedestals must NOT be subjected to water pressure because they may experience water intrusion and subsequent failure.

Pressure washing will invalidate the warranty for those products.

Supplied with electronic control box
