17998/40/30

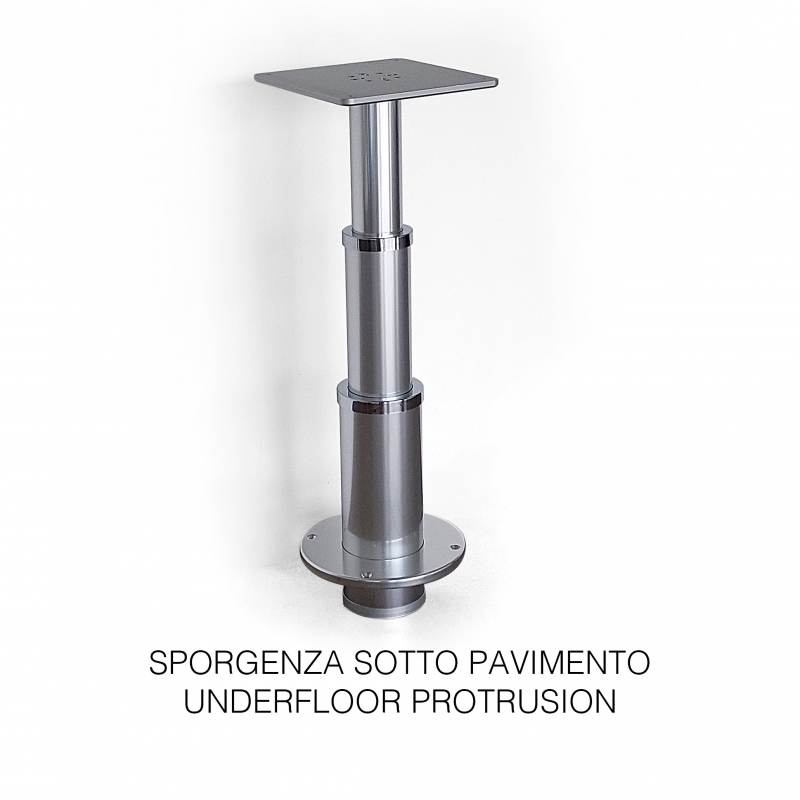

TWO STAGES electric table pedestal
with underfloor protrusion
–––––––––––––––––––––––––––––––––––––

17998/40/30/12

Reference: 08.02.20012    12 Volt
––––––––––––––––––––––––––––––––––––––––––––––

17998/40/30/24

Reference: 08.02.20024    24 Volt
––––––––––––––––––––––––––––––––––––––––––––––

More details

Request information >

Built in polished, brightened and anodized light alloy

  • Push 80 Kg – Speed 16 mm/sec – Stroke 400 mm.
  • The size of the tubes and bases make it ideal for tables of medium dimensions.
  • The two stages telescope enables to get a reduced minimal height, often necessary to transform a table in bed.
  • Powered on request with 12V-10A or 24V-5A
  • The electric movement can be stopped in any position
  • Only the power supply cable and the water drainage hose (when installed outdoor) goes through the floor.
  • Operated with a 3 position switch (not supplied) (UP - DOWN and automatic return to zero).
  • The switch doesn't need to reverse the polarity as the power doesn't flow through it.

CAUTION!

DO NOT PRESSURE WASH electric pedestals. Pedestals must NOT be subjected to water pressure because they may experience water intrusion and subsequent failure.

Pressure washing will invalidate the warranty for those products.

  • CONTROL BOX FOR UNITS WITHOUT ENCODER Indicate the SERIAL NUMBER of the item or the characteristic or the thrust of the strut, voltage and amperage If you need replacement, please providethe serial number on the system label

  • TWO STAGES pair telescopic electric table pedestals. With under floor protrusion. Syncronized. With encoder –––––––––––––––––––––––––––––––––––––––––––––– E17998/40/30/2/12 Reference: 08.02.20014    12 Volt –––––––––––––––––––––––––––––––––––––––––––––– E17998/40/30/2/24 Reference: 08.02.20026    24 Volt...
