  • 19898

    TWO STAGES electric table pedestal...

19898

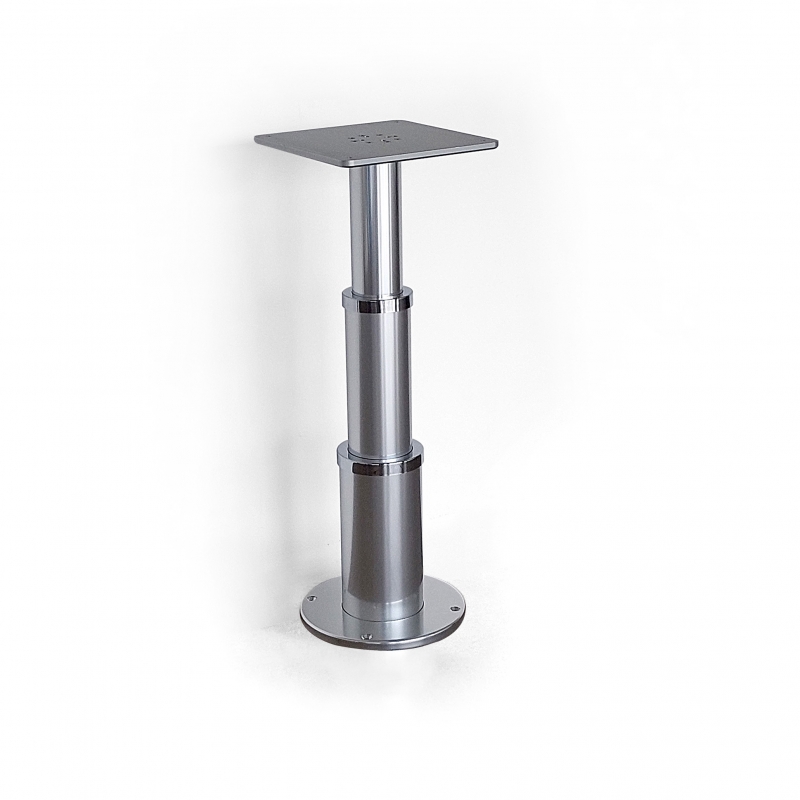

TWO STAGES electric table pedestal

–––––––––––––––––––––––––––––––––––––

19898/12

Reference: 08.02.11012    12 Volt
––––––––––––––––––––––––––––––––––––––––––––––

19898/24

Reference: 08.02.11024    24 Volt
––––––––––––––––––––––––––––––––––––––––––––––

SYNCHRONIZED PAIR

––––––––––––––––––––––––––––––––––––––––––––––

E19898/2/12

Reference: 08.02.11014    12 Volt
––––––––––––––––––––––––––––––––––––––––––––––

E19898/2/24

Reference: 08.02.11026    24 Volt

More details

Request information >

Built in polished, brightened and anodized light alloy

  • The size of the tubes and bases make it ideal for tables of medium dimensions.
  • The two stages telescope enables to get a reduced minimal height, often necessary to transform a table in bed.
  • Powered on request with 12V-10A or 24V-5A - Thrust 80 Kg – Speed 16 mm/sec – Stroke 350 mm.
  • The electric movement can be stopped in any position - Electronic control box included.
  • Only the power supply cable and the water drainage hose (when installed outdoor) goes through the floor.
  • Operated with a 3 position switch (not supplied) (UP - DOWN and automatic return to zero).
  • The switch doesn't need to reverse the polarity as the power doesn't flow through it.
  • Control box for synchronized pair table pedestals, included

CAUTION!

DO NOT PRESSURE WASH electric pedestals. Pedestals must NOT be subjected to water pressure because they may experience water intrusion and subsequent failure.

Pressure washing will invalidate the warranty for those products.
