  • 18693

    THREE STAGES electric table pedestal,...

18693

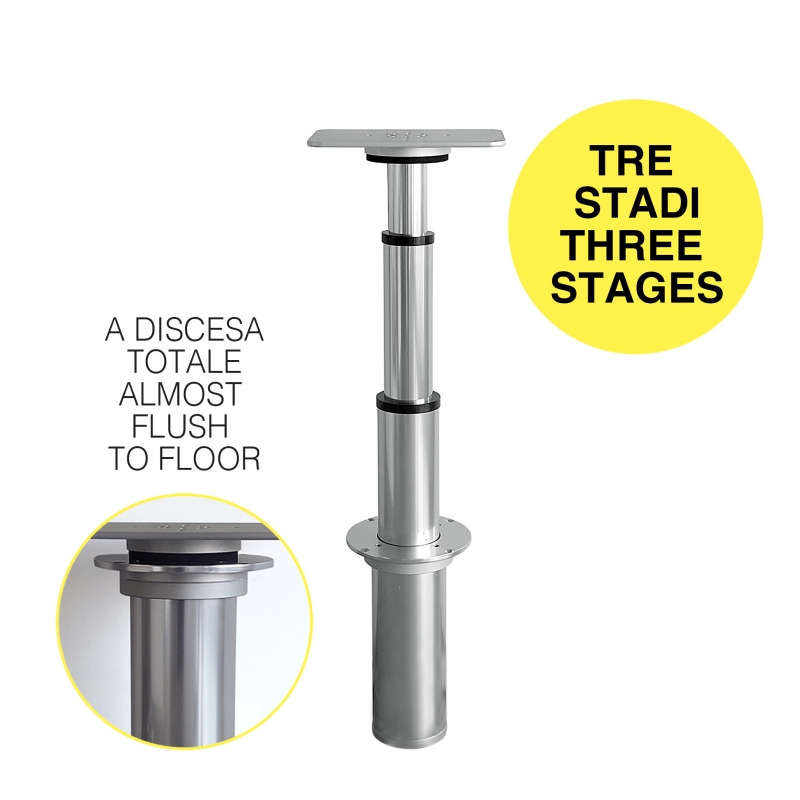

THREE STAGES electric table pedestal,
can be lowered to the floor
––––––––––––––––––––––––––––––––––––––––––––––

18693/12

Reference: 08.02.40012    12 Volt
––––––––––––––––––––––––––––––––––––––––––––––

18693/24

Reference: 08.02.40024    24 Volt
––––––––––––––––––––––––––––––––––––––––––––––

Supplied with wiring box

More details

Request information >

Built in polished, brightened and anodized light alloy

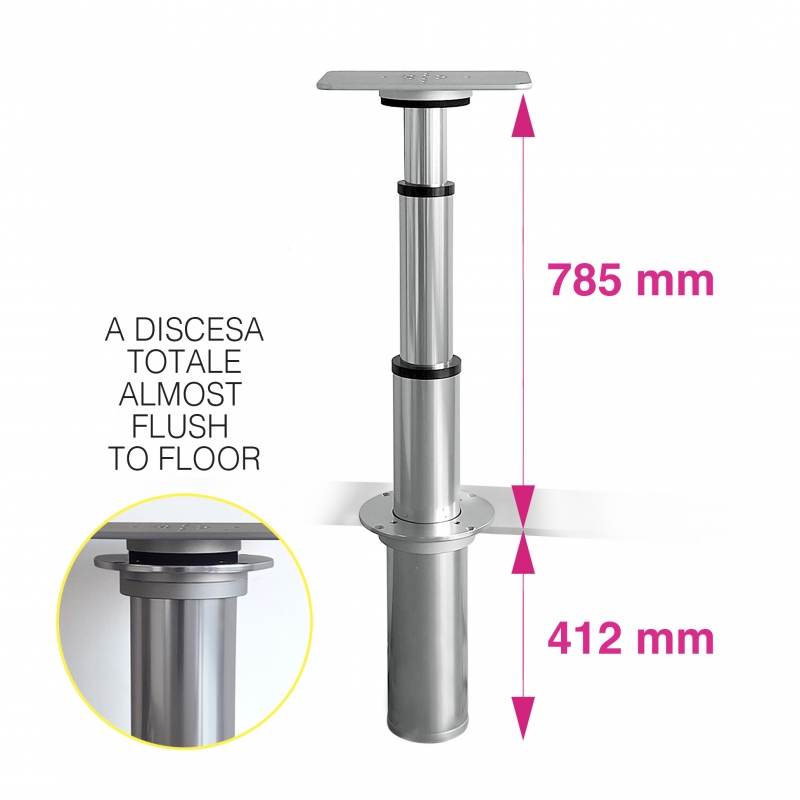

  • Push 50 Kg – Stroke 730 mm – Speed 16 mm/sec.
  • The feature to lower the table to the floor makes of these pedestals something special.
  • The generous size of the tubes make it ideal for tables of large dimensions.
  • The three stages telescope enables to get a limited protrusion under the floor.
  • Powered on request with 12V-10A or 24V-5A
  • Can be stopped in any position.
  • Operated with a 3 position switch (not supplied) (UP - DOWN and automatic return to zero).
  • The switch doesn't need to reverse the polarity as the power doesn't flow through it.

CAUTION!

DO NOT PRESSURE WASH electric pedestals. Pedestals must NOT be subjected to water pressure because they may experience water intrusion and subsequent failure.

Pressure washing will invalidate the warranty for those products.

  • Buzzer, 12 or 24 Volt ––––––––––––––––––––––––––––––––––––––––––– BEBIP/12 12 Volt Reference: 09.99.00051   –––––––––––––––––––––––––––––––––––––– BEBIP/24 24 Volt Reference: 09.99.00052 –––––––––––––––––––––––––––––––––––––––

  • WITH FUSE FOR UNITS WITHOUT ENCODER
