PI120S*

02.01.20025

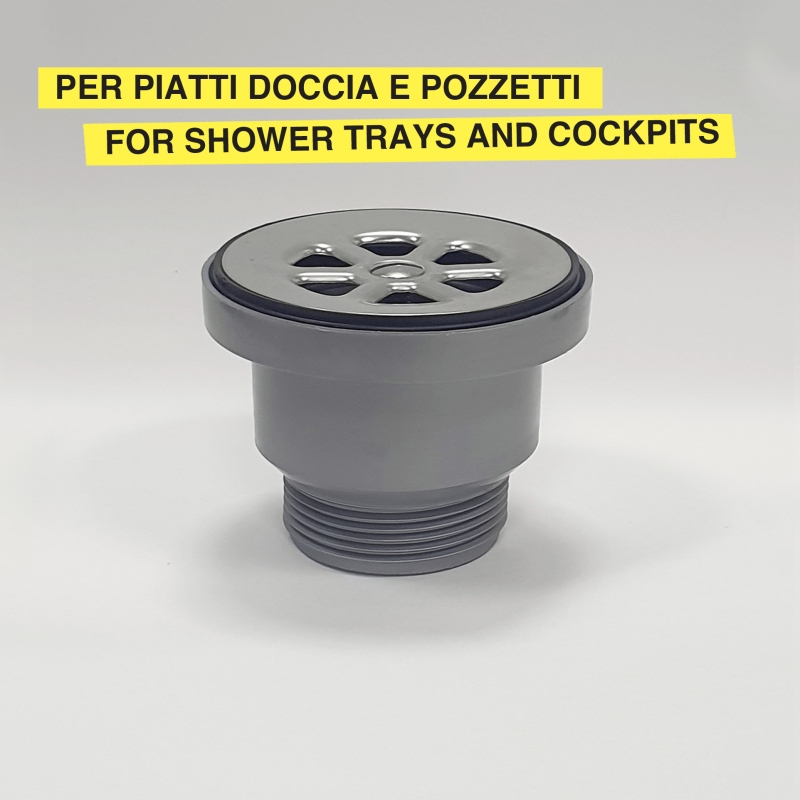

Elbow drainer for shower trays (without plug)
1"1/2 M BSP

Suitable for standard hole min. 53,5 mm

  • Allows the use of drain adaptors for hoses with a diameter between 20 to 40 mm.
  • The classical shape enables a wide choice of solutions with stright or elbow adaptors.
  • The accurate manufacture and the first quality materials assure perfect tightness and long working life
  • Polypropilene silver-grey body.
    CAUTION: The metallic grey finish may have darker streaks that do not indicate a mechanical defect.
  • AISI 304 stainless steel grid and screw.
  • Non-toxic PVC gasket.
  • Weight 91 g

Request information >
  • Hose-tail dia 1"1/4 F BSP x 20 mm (3/4" BSP) with mobile threaded ring nut It can be connected directly to the waste drainer PI1435TM  and to other models by means of the adaptor PA1214. Made in polypropilene Weight 23 g

  • Hose-tail dia 1"1/4 F BSP x 25 mm (1" BSP) with mobile threaded ring nut It can be connected directly to the waste drainer PI1435TM and to other models by means of the adaptor PA1214. Made in polypropilene Weight 23 g

  • Elbow pipe dia 1"1/4 F GAS x 32 mm (1"1/4 GAS) with mobile threaded ring nut It can be connected directly to the waste drainer PI1435TM and to other models by means of the adaptor PA1214 Made in polypropilene white. Weight 31 g

  • Straight pipe dia 1"1/2 F BSP x 40 mm with fixed threaded ring nut Made in polypropilene silver-grey CAUTION: The metallic grey finish may have darker streaks that do not indicate a mechanical defect. Weight 37 g

  • Elbow pipe dia 1"1/2 F BSP x 40 mm with mobile threaded ring nut Made in polypropilene silver-grey CAUTION: The metallic grey finish may have darker streaks that do not indicate a mechanical defect. Weight 88 g It can be connected directly to waste drainers 1"1/2 M BSP  PI1235 - PI1235GR - PI1260GP - PI1290GP

  • Adaptor 1"1/2 F BSP - 1"1/4 M BSP Allows to connect accessories Made in polypropilene CAUTION: The metallic grey finish may have darker streaks that do not indicate a mechanical defect. Weight 13 g

  • Straight pipe dia 1"1/2 F BSP x 32 mm with fixed threaded ring nut Made in polypropilene silver-grey CAUTION: The metallic grey finish may have darker streaks that do not indicate a mechanical defect. Weight 31 g
