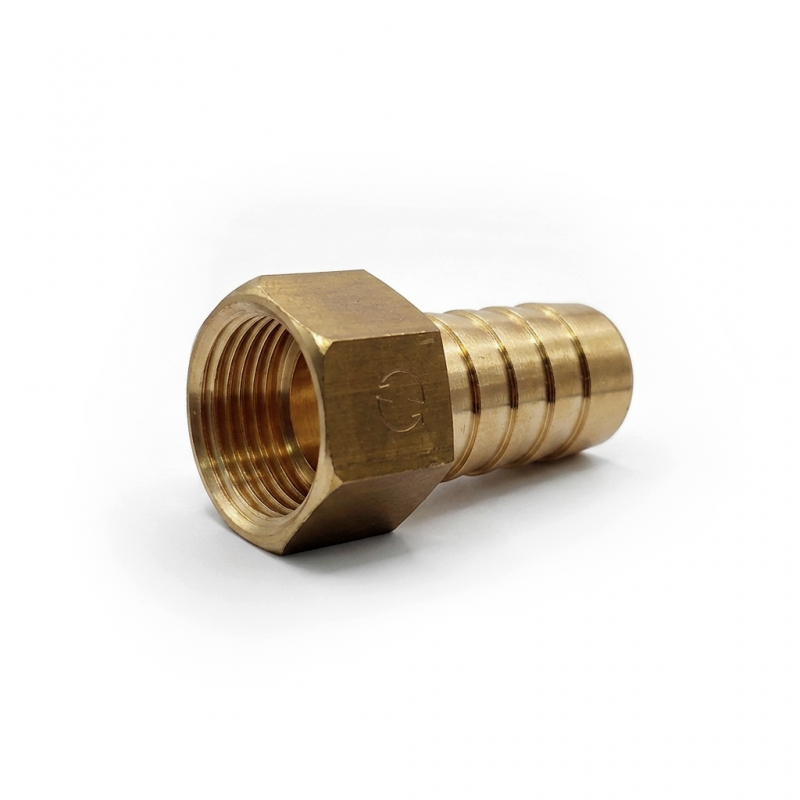

Female hosetails
Made in brass...
Female hosetails
Female hosetails
Made in brass
––––––––––––––––––––––––––––––––––––––––––
PGB 3812
Reference: 04.51.03812
Thread 3/8" F BSP – Hosetail dia 12 mm – Weight 23 g
––––––––––––––––––––––––––––––––––––––––––––––
PGB 3814
Reference: 04.51.03814
Thread 3/8" F BSP – Hosetail dia 14 mm – Weight 21 g
––––––––––––––––––––––––––––––––––––––––––––––
PGB 1216
Reference: 04.51.01216
Thread 1/2" F BSP – Hosetail dia 16 mm – Weight 37 g
––––––––––––––––––––––––––––––––––––––––––––––
Fittings are made of high-quality brass . Thread complies with UNI EN ISO 228-1:2003.
They are suitable for hot and cold water in sanitary and heating installations and in any kind of sanitary installation such as domestic, commercial, industry and farming.
| APPLICATIONS | APPLICATIONS | T. min. | T. max with gasket | T. max without gasket | Press.max with gasket | Press.max without gasket |
|---|---|---|---|---|---|---|
 |
drinking water | -20°C | +100°C | +120°C | 10 bar | 16 bar |
 |
sanitary hot water | -20°C | +100°C | +120°C | 10 bar | 16 bar |
 |
cooling | -20°C | +100°C | +120°C | 10 bar | 16 bar |
 |
radiators | -20°C | +100°C | +120°C | 10 bar | 16 bar |
 |
irrigation | -20°C | +100°C | +120°C | 10 bar | 16 bar |
 |
compressed air | -20°C | +100°C | +120°C | 10 bar | 16 bar |
 |
-20°C: only with antifreeze liquid (glycol) in % max of 30% | -20°C: only with antifreeze liquid (glycol) in % max of 30% | -20°C: only with antifreeze liquid (glycol) in % max of 30% | -20°C: only with antifreeze liquid (glycol) in % max of 30% | -20°C: only with antifreeze liquid (glycol) in % max of 30% | -20°C: only with antifreeze liquid (glycol) in % max of 30% |
