  • MM7700

    One handle mixer with swivel spout...

MM7700

03.06.11000

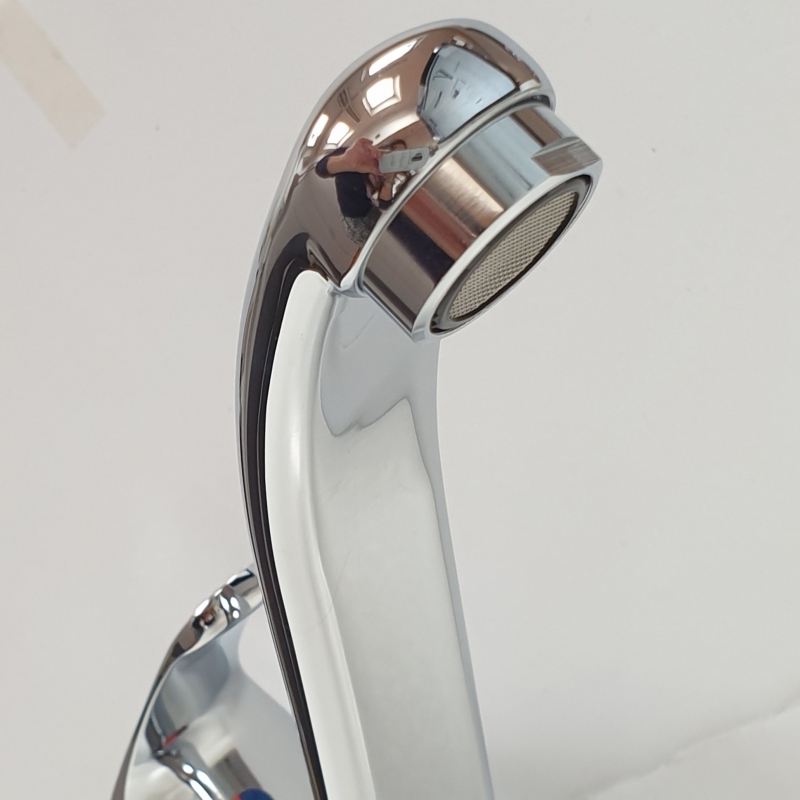

One handle mixer with swivel spout and aerator

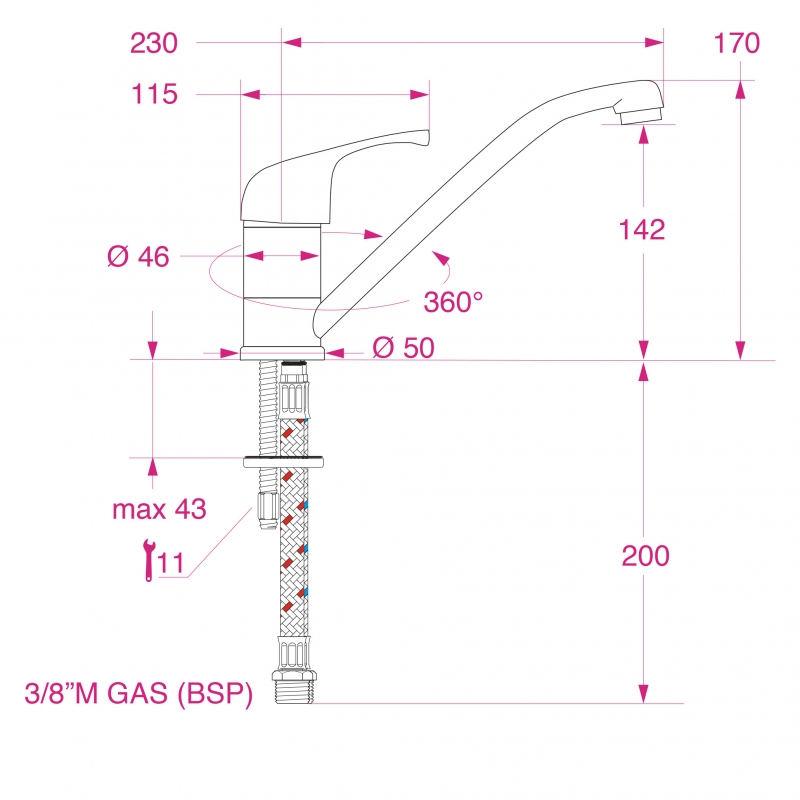

  • Typical kitchen mixer with long and tall spout, suitable for large and double sinks
  • Body and spout in chrome brass.
  • Supplied with under tap flex FLX103821
  • Weight 1,180 Kg
Like all machines, the faucets are prone to failure. We deal here with problems whose cause is less obvious. Water leakage.
In addition to the more trivial cases of leakage in the presence of joints, such as those of the under tap hoses, which normally require replacement of gaskets, losses between the body and the control lever can occur in single-lever mixers. The most common cause is the breakage of the mixing cartridge, usually caused by freezing water in winter due to failure to empty the plumbing, resulting in increased volume occupied and cartridge breakage.
In swivel spout mixers, losses may occur between the swiveling and fixed part (above and/or below) due to wear of one or both 'O' Rings which must be replaced as illustrated.

SERVICE

Request information >
  • Ceramic cartridge dia 40 mm

  • Under tap flexible with blue or red marking tape Fittings 10/1 M – 3/8" M BSP –––––––––––––––––––––––––––––––––––––– Blue (Length 21 cm) FLX103821B Reference: 03.59.00405 –––––––––––––––––––––––––––––––––––––– Red (Length 21 cm) FLX103821R Reference: 03.59.00406 –––––––––––––––––––––––––––––––––––––– Neutral (Length 21 cm) FLX103821...

  • Classic In chrome zamak Weight 110 g

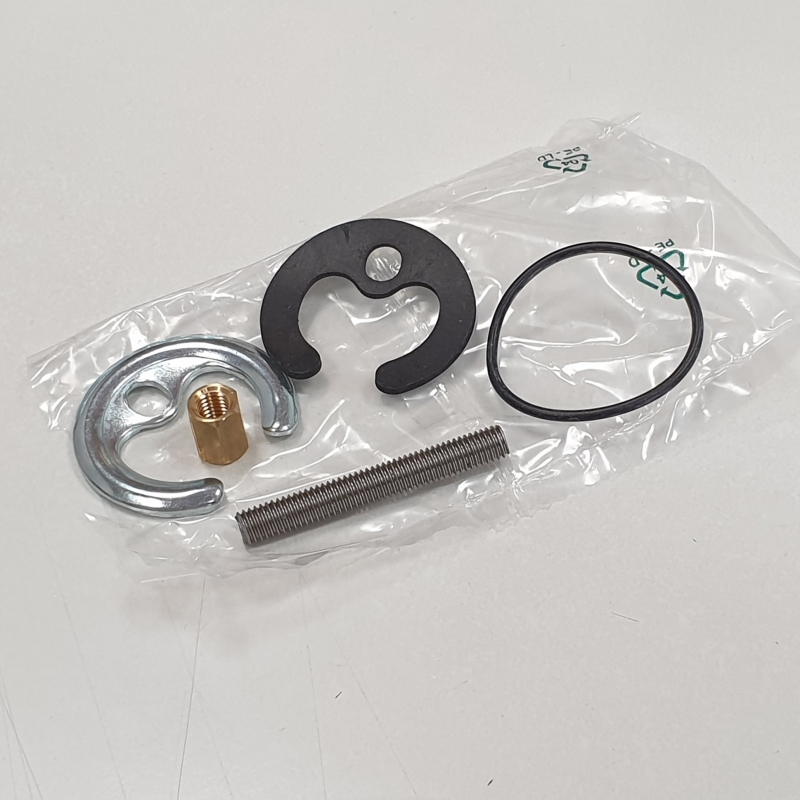

  • "Gacos" Washer kit + white teflon gasket Suitable for one handle mixers
