10600/30

Tube and plate o slide in anodized light alloy. Brightened sand blast base

• Suitable for pleasure boats, not particularly fast.
• Two chrome handles allows to rotate the chair and to modify the height.
• Base diameter 220 mm - Height min. 390 - max 590 mm - stroke 200 mm.
• The accurate finish make it suitable for any context.
• The plastic bushes inside the pedestal avoid the risk to scratch the surface of the piston.
• The chair can be rotated at rest over 360°.
• While sailing, for safety reasons, the set-up handles must be locked.

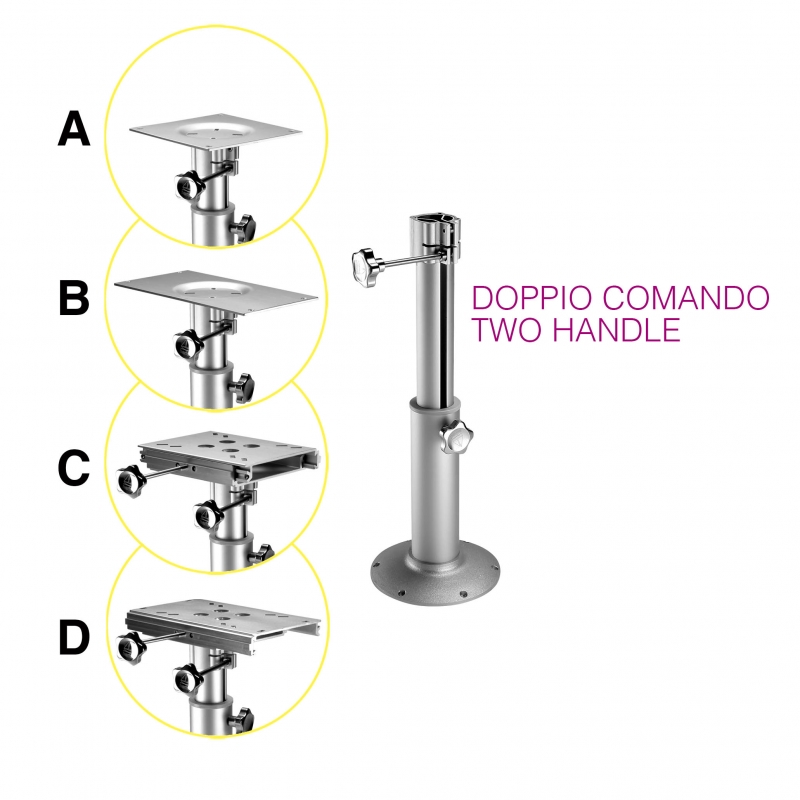

• The top plate (A) is universal.
• The top plate (B) fits our chairs.
• The slider (C) can be adjusted, when not occupied, on 190 mm of stroke.
• The slider (D) fits our chairs and can be adjusted, when not occupied, on 135 mm of stroke.
