10295 - 10295/35

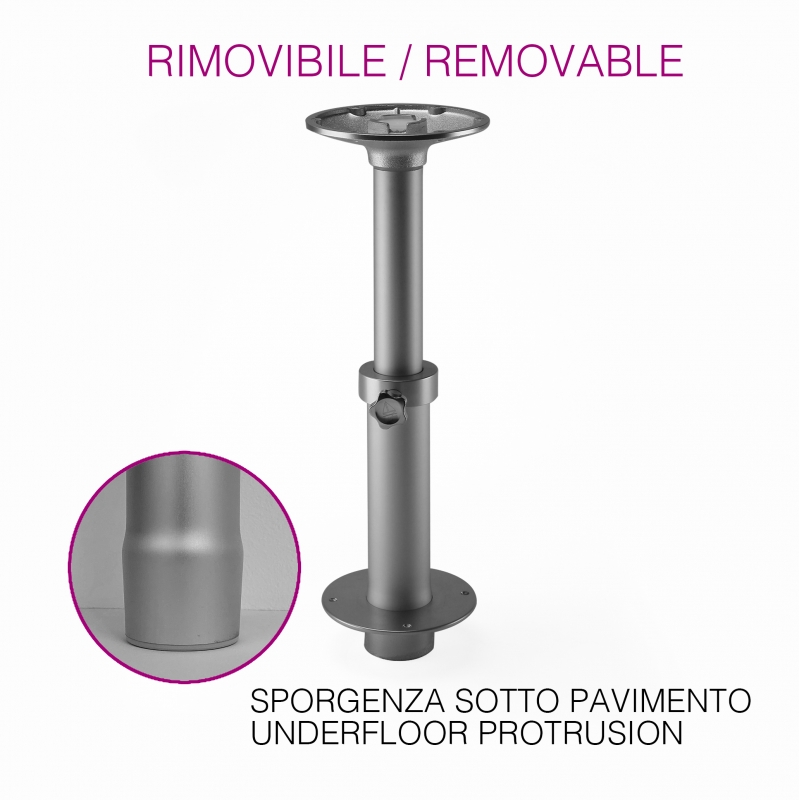

Removable manual telescopic table pedestal
with flush deck base
––––––––––––––––––––––––––––––––––––––––––––––––––––

10295

Bases 00106/1 - 00107

Reference: 08.25.30001

––––––––––––––––––––––––––––––––––––––

10295/35

Without bases

Reference: 08.25.33500

More details

Request information >

Built in anodized light alloy. Top base sand blast and anodized.

  • Suitable for small size tables.
  • The piston can be locked in any intermediate position.
  • The post and the upper base can be separated.
  • It's possible to use the same leg on different bases to move the table.
  • The tight tolerances of the conicity of the base and the leg guarantee to this pedestal a superior stability.
  • The heavy duty anodization assure an exceptional resistence to the marine environment.
  • The plastic bushes inside the pedestal avoid the risk to scratch the surface of the piston.
  • On request a lid is available to cover the hole (00292) of the built-in base when the leg is not inserted.
  • Built-in bottom base dia 180 mm for table/chair removable pedestals with 80 mm dia post Made in sand blast, anodized and shined light alloy  External dia Post dia Projection Hole dia 180 80 70 95

  • Built-in bottom base for removable table/chair pedestals with dia 80 mm post Made in polished and anodized light alloy External dia Post dia Projection Hole dia 200 80 70 95

  • Top and bottom base dia 220 mm for removable table/chair pedestals with post dia 55 mm Made in sand blast, anodized and shined light alloy External dia Post dia 220 55

  • Plastic lid for built-in base –––––––––––––––––––––––––––––––––––––––––––––––––––– 00222 for 00103 base used with the 10191 pedestal Reference: 08.90.00222 –––––––––––––––––––––––––––––––––––––– 00292 for bases used with the: 10193 - 10293 - 10295 - 10504 - 10700 pedestals Reference: 08.90.00292
