10191 - 10191/70

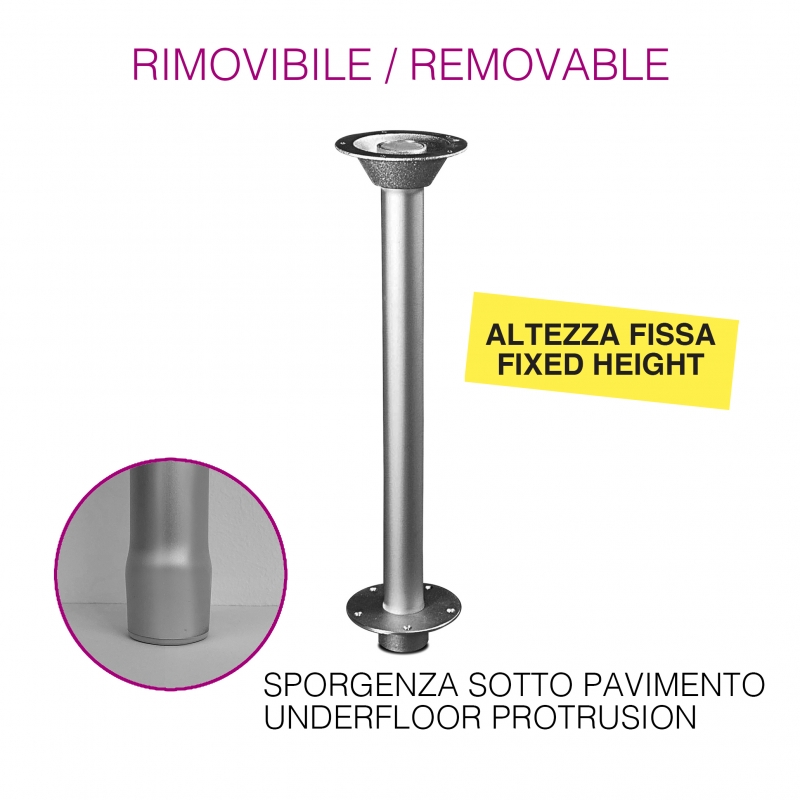

Removable table pedestal with flush deck base

––––––––––––––––––––––––––––––––––––––––––––––––––––

10191

Bases 0010200103

Reference: 08.25.00001

–––––––––––––––––––––––––––––––––––––––

10191/70

Without bases

Reference: 08.25.07000

More details

Request information >

Built in anodized light alloy

  • Suitable for small size tables.
  • The post and the upper base can be separated.
  • It's possible to use the same post on different bases to move the table.
  • Standard bases 00102 - 00103 – Optional 00107.
  • To change the height for distinct purposes (table and bed) employ two legs of different height.
  • On request we can supply posts of several lengths.
  • The tight tolerances of the conicity of the bases and the post, guarantee to this pedestal a superior stability.
  • The heavy duty anodization assure an exceptional resistence to the marine environment.
  • The extremities of the tube are closed with plastic plugs to avoid deformations in case of falls.
  • On request a lid is available to cover the hole (00222) of the built-in base when the post is not inserted.
  • Conical base Ø 170 mm for removable table/chair pedestals with Ø 55 mm post Made in sand blast, anodized and shined light alloy External dia Post dia 170 mm 55 mm

  • Built-in bottom base dia 165 mm for removable table/chair pedestals with post dia 55 mm Made in polished and anodized light alloy External dia Post dia Projection Hole dia 160 55 55 70

  • Top and bottom base dia 220 mm for removable table/chair pedestals with post dia 55 mm Made in sand blast, anodized and shined light alloy External dia Post dia 220 55

  • Plastic lid for built-in base –––––––––––––––––––––––––––––––––––––––––––––––––––– 00222 for 00103 base used with the 10191 pedestal Reference: 08.90.00222 –––––––––––––––––––––––––––––––––––––– 00292 for bases used with the: 10193 - 10293 - 10295 - 10504 - 10700 pedestals Reference: 08.90.00292
