10293 - 10193/74

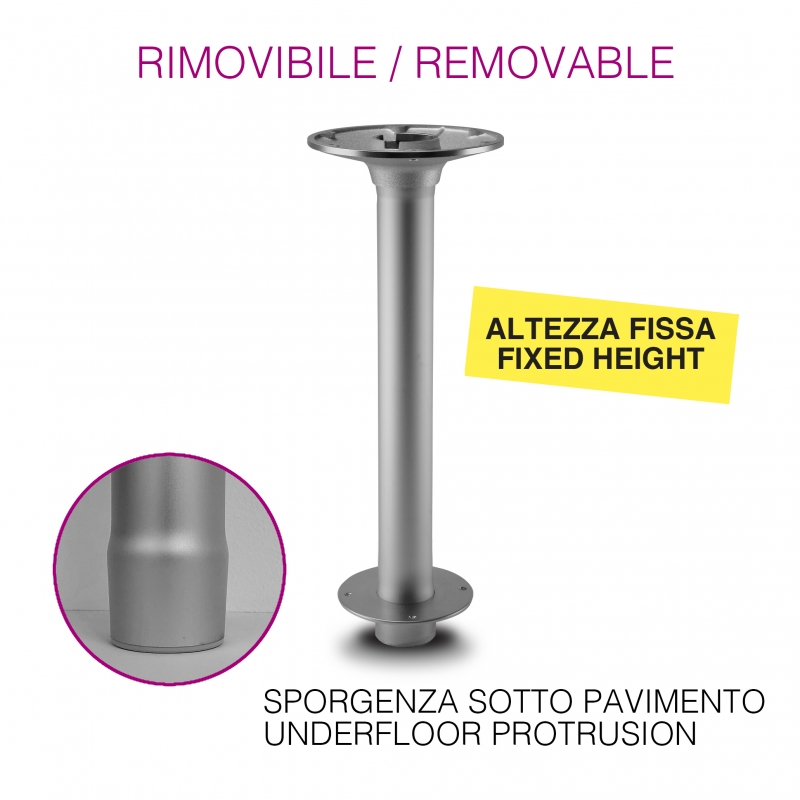

REMOVABLE table pedestal

––––––––––––––––––––––––––––––––––––––––––––––––––––

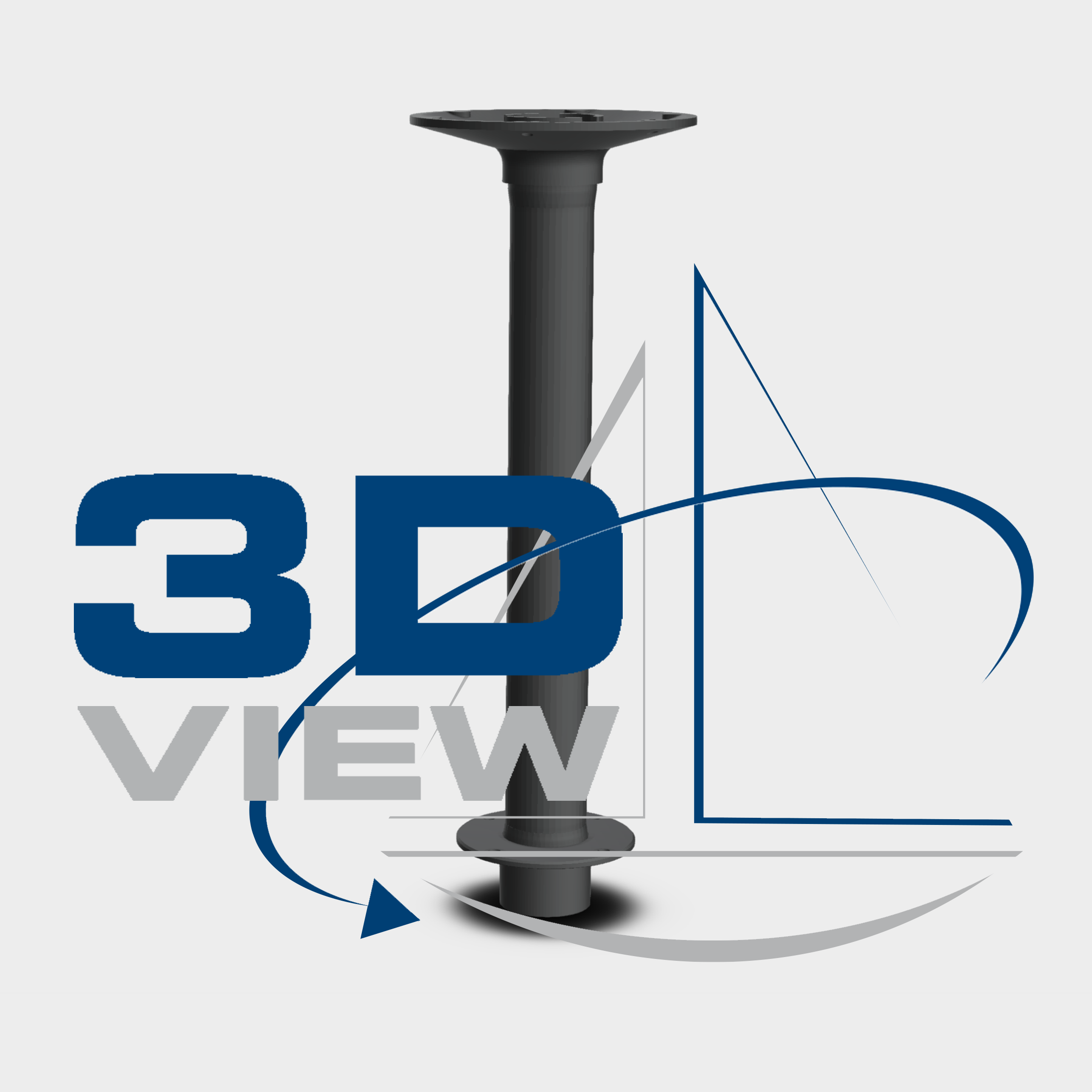

10293

Bases 00106 - 00109

Reference: 08.25.10002

–––––––––––––––––––––––––––––––––––––––

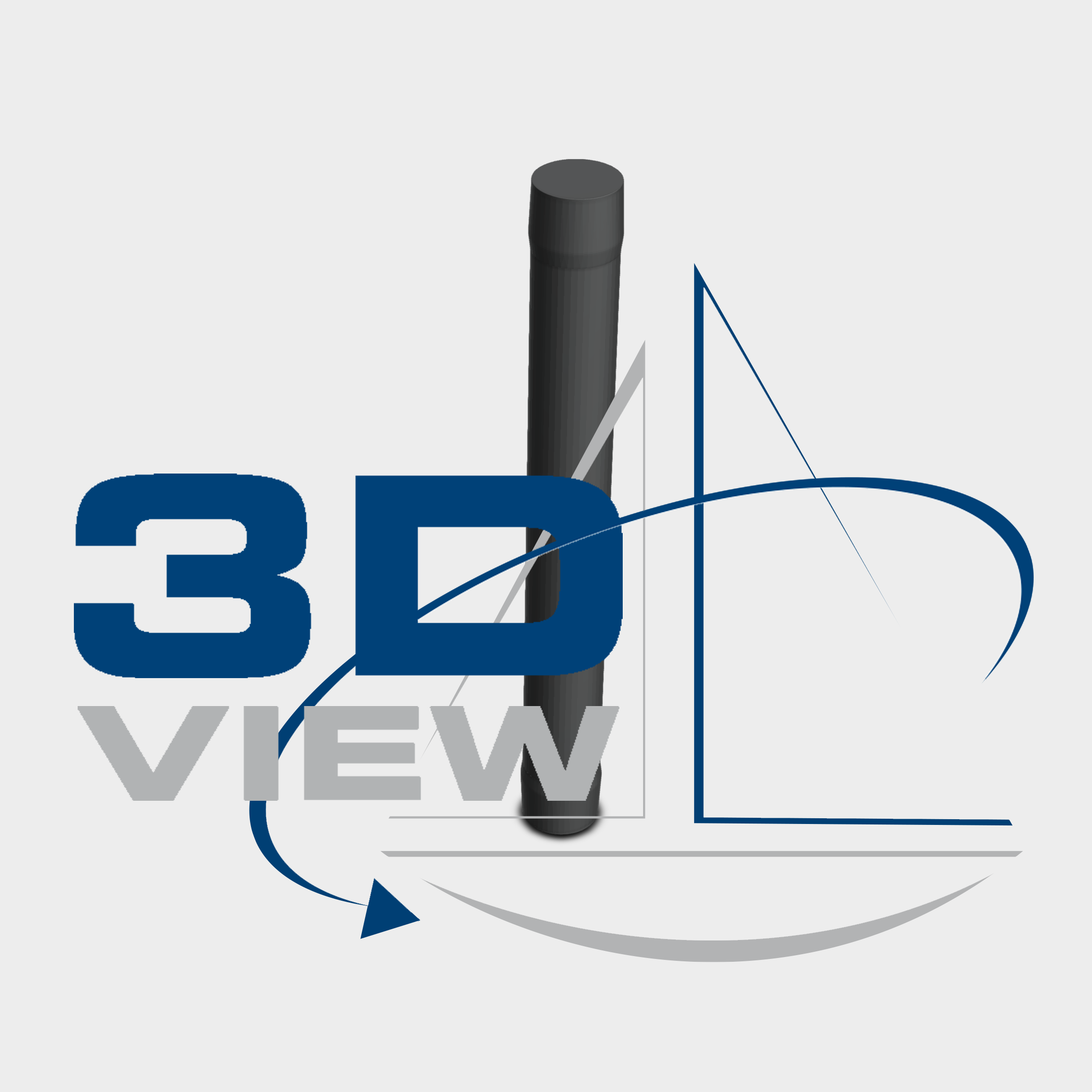

10193/74

Without bases

Reference: 08.25.17400

More details

Request information >

Tube in anodized light alloy. Bases sand blast and anodized

  • Suitable for medium size tables.
  • The post and the upper base can be separated.
  • It's possible to use the same post on different bases to move the table.
  • Standard bases 00106 - 00109 – Optional 00106/1
  • To change the height for distinct purposes (table and bed) employ two legs of different height.
  • On request we can supply posts of several lengths.
  • The tight tolerances of the conicity of the bases and the post, guarantee to this pedestal a superior stability.
  • The extremities of the tube are closed with plastic plugs to avoid deformations in case of falls.
  • The heavy duty anodization assure an exceptional resistence to the marine environment.
  • Built-in bottom base dia 180 mm for table/chair removable pedestals with 80 mm dia post Made in sand blast, anodized and shined light alloy  External dia Post dia Projection Hole dia 180 80 70 95

  • Built-in bottom base for removable table/chair pedestals with dia 80 mm post Made in polished and anodized light alloy External dia Post dia Projection Hole dia 200 80 70 95

  • Base (top and bottom) Ø 270 mm for removable table/chair pedestals with post dia 80 mm Made in sand blast, anodized and shined light alloy External dia Post dia 270 80

  • Plastic lid for built-in base –––––––––––––––––––––––––––––––––––––––––––––––––––– 00222 for 00103 base used with the 10191 pedestal Reference: 08.90.00222 –––––––––––––––––––––––––––––––––––––– 00292 for bases 00106 and 00106/1 used with the: 10193 - 10293 - 10295 - 10504 - 10700 pedestals Reference: 08.90.00292
